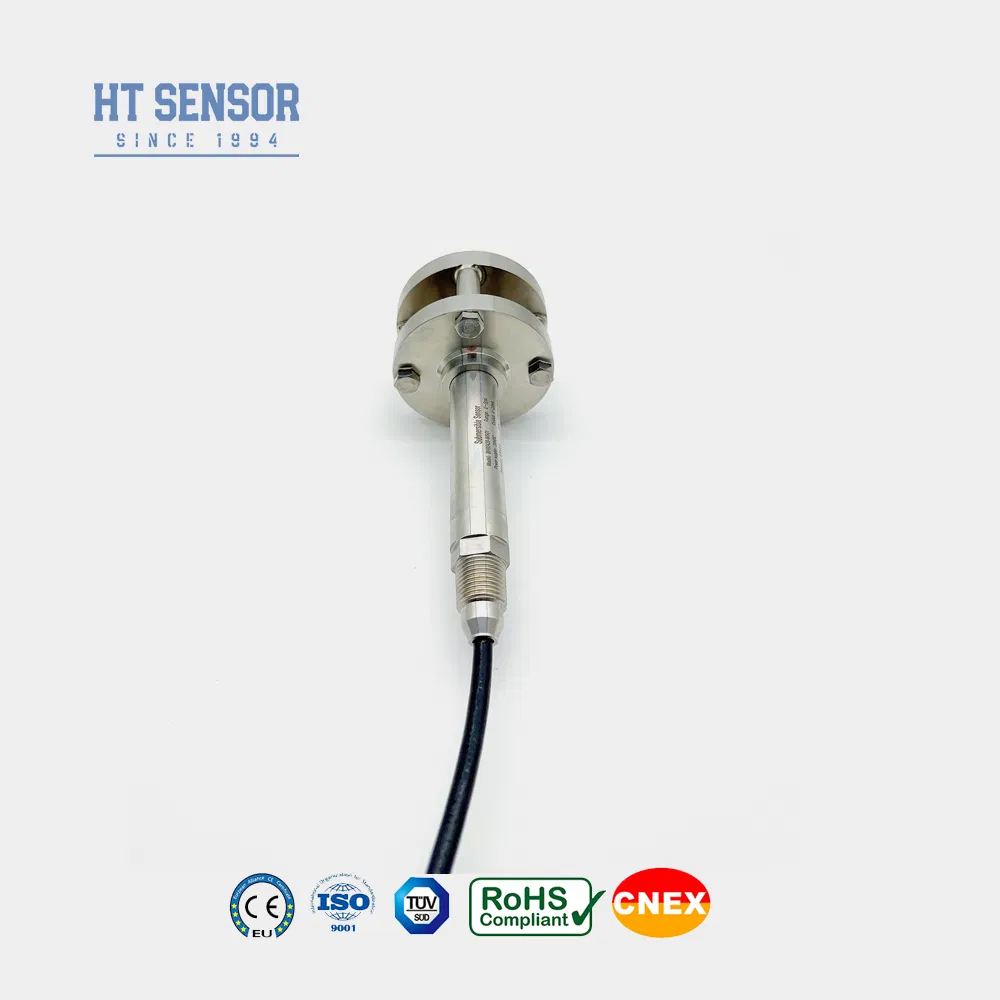

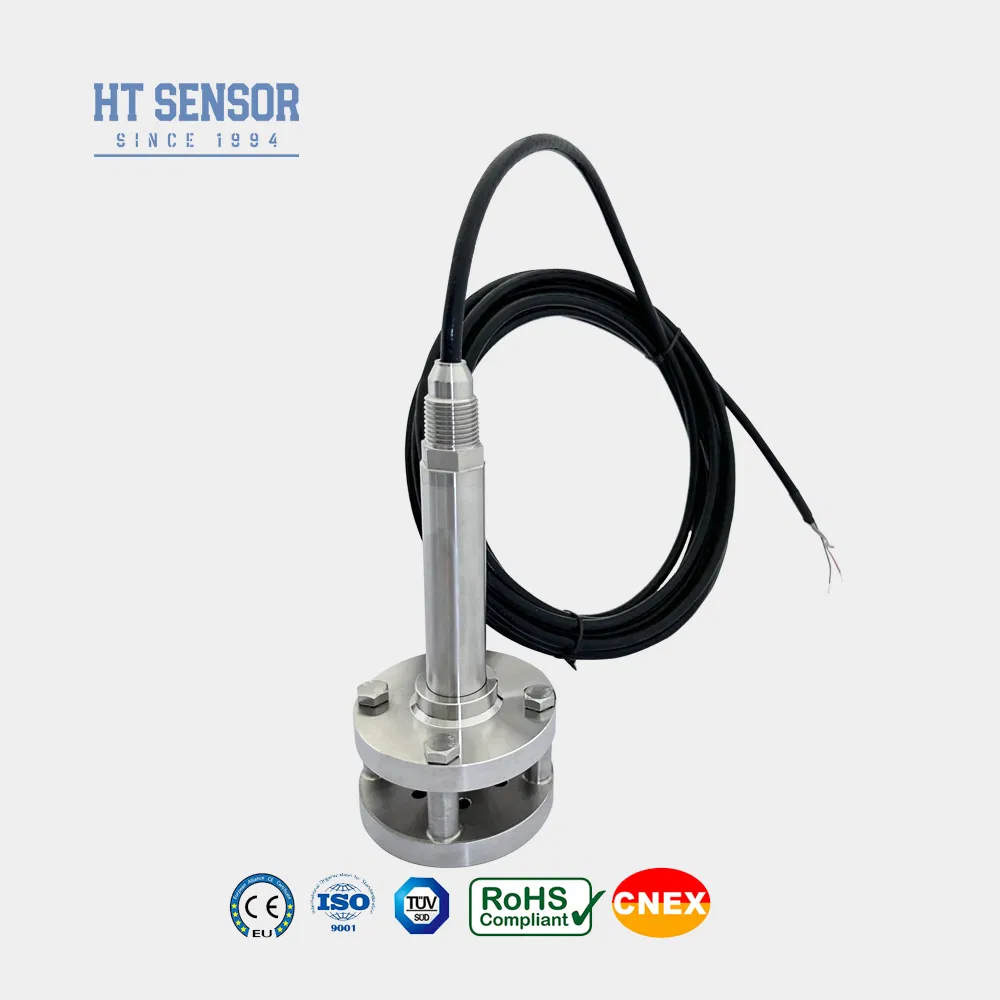

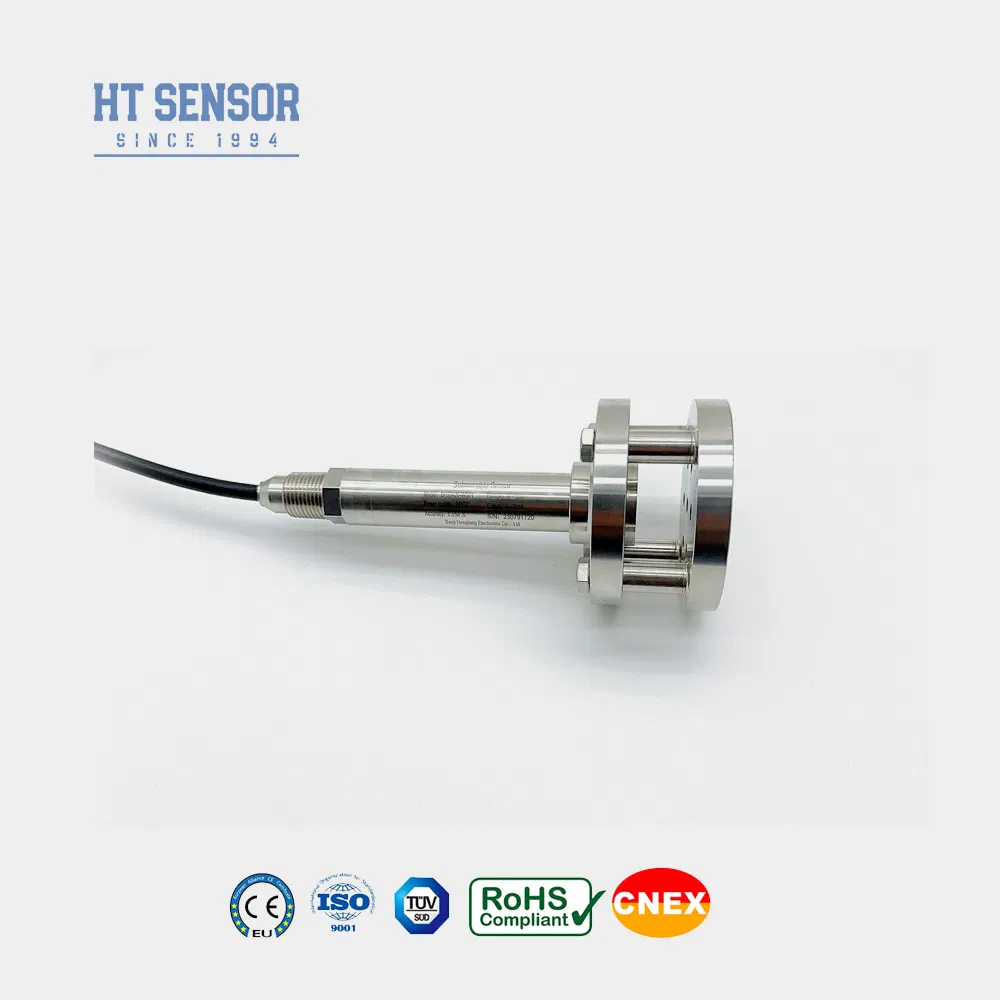

BH-WS 4-20mA weld liquid level transmitter with flange pressure transducer

Display Type : Without Display

Certification : CE, RoHS, ISO9001

Houing Material : 316L Stainess Stee

Accuracy Grade : 0.2%,0.5%

Pressure Range : 0-1m-400 mH2O

MOQ : 1 Piece

Stability : ±0.1%F.S/Year(Typ.)

Diaphragm Material : 316L Stainess Stee

Trademark : HT sensor

HS Code : 90261000

Origin : Shaan Xi

Production Capacity : 300-500pieces

Price : US $170-310 / Piece

Model NO. : BH-WS

Net Weignt : 2.1kg

Customized : Customized

Transport Package : Carton

IP Rating : IP68

Contact Now

BH-WS 4-20mA weld liquid level transmitter with flange pressure transducer

BH-WS Sewage Level Sensor

Introduction:

BH-WS sewage level sensor utilizes a high-precision piezoresistive silicon pressure sensor as the sensitive measuring element. It features a robust and durable design with a full 316L stainless steel construction. This transmitter is suitable for measuring liquid levels in environments with contaminated liquids,such as sludge tanks, clarifiers, digester, alum tanks, chemical storage tanks, oil tanks, lime slurry, sewage pits, and water reservoirs
Product Features:

Specially designed for harsh environments
Explosion-proof marking : ExiaIICT6
High protection : IP68
Full 316L stainless steel structure with excellent corrosion resistance
High precision and good stability

Applications:

Compatible with 316LSS,noncorrosive liquids
Monitoring of oil level in diesel tanks, fuel tanks, and other fuel containers
Level measurement in polluted liquids, such as sludge tanks, clarifiers, digesters, alum tanks, chemical storage tanks, sewage pits, and water reservoirs

Performance Parameters
Measurement Range	0~10m…400m
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 2X rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.2%F.S/year (Max.)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	-10-80ºC
Operating Temperature	-20~100ºC
Storage Temperature	-30~100ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	316L Stainless Steel
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP67, IP68
O-Ring Seal	Fluoro rubber
Weight	~2.1Kg (without cable)
Cable Material	Polyethylene, Polyurethane,PTFE

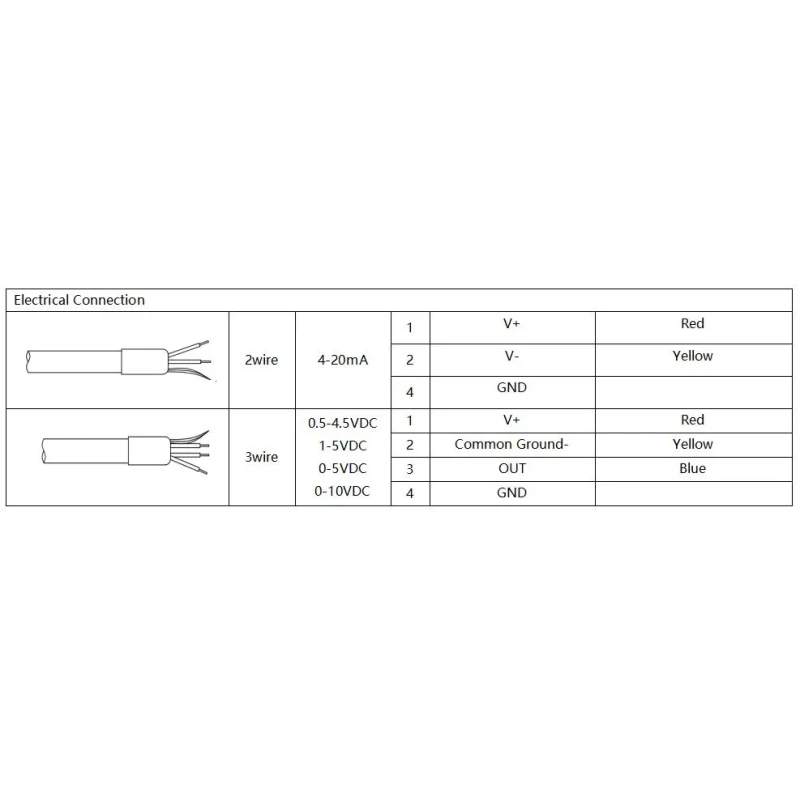

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V
0/1~10V
0.5~4.5V	5VDC

Outline Construction

Selection Examples

Ordering tips

1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.

Order Guide
BH	Code	Outline Construction
	WS	Pressure Transmitter
		Measurement Range	0~10m…400m
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC	S5	0~20mADC
				S2	1~5VDC	S6	0~10VDC
				S3	0~5VDC	S7	0.5~4.5VDC
				S4	0~10mADC
					Code	Pressure Type
					G	Gauge Pressure
					A	Absolute Pressure
					S	Sealed Reference Pressure
							Code	Cable Material
							C1	PE
							C2	PU
							C3	PTFE

FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
